Axles Plus offers a full range of trailer axles, components, and accessories built for durability, reliability, and long term performance.

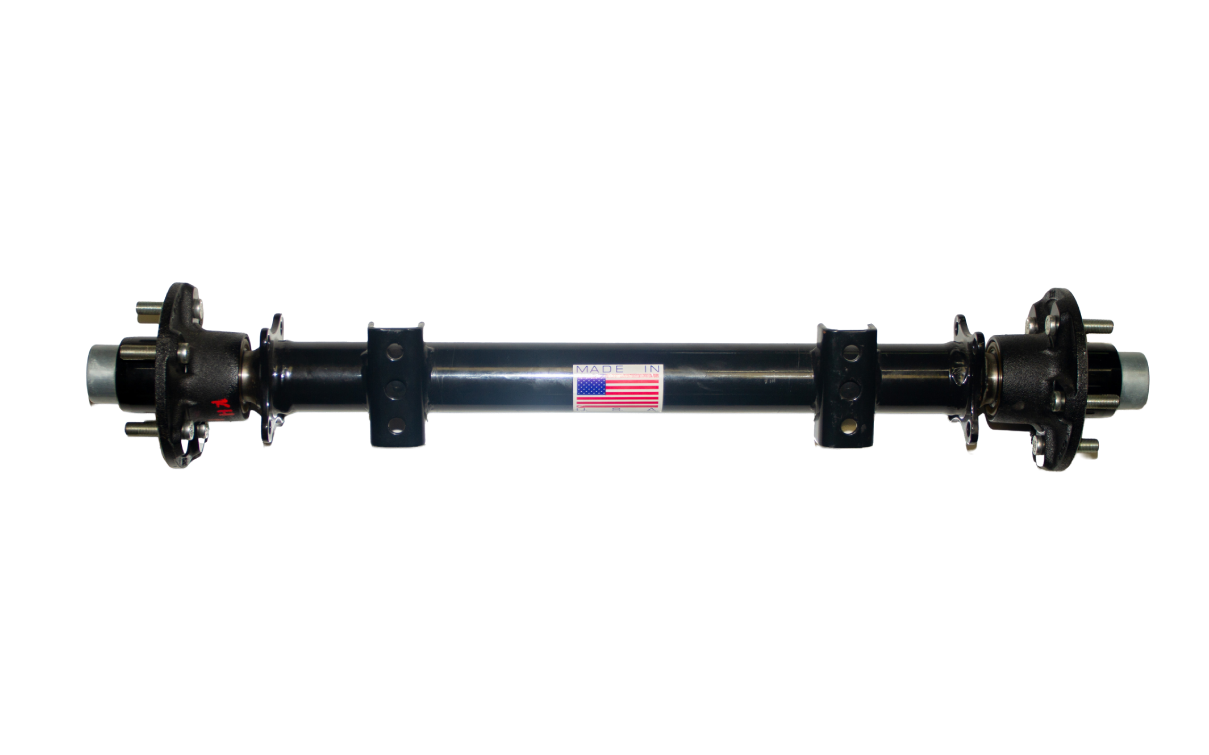

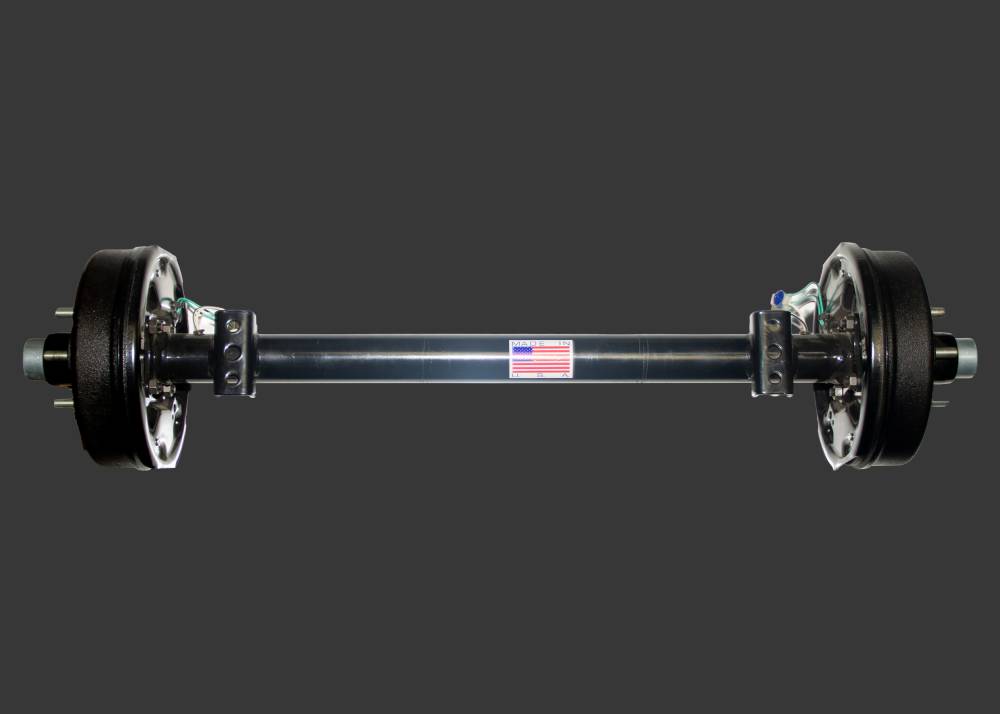

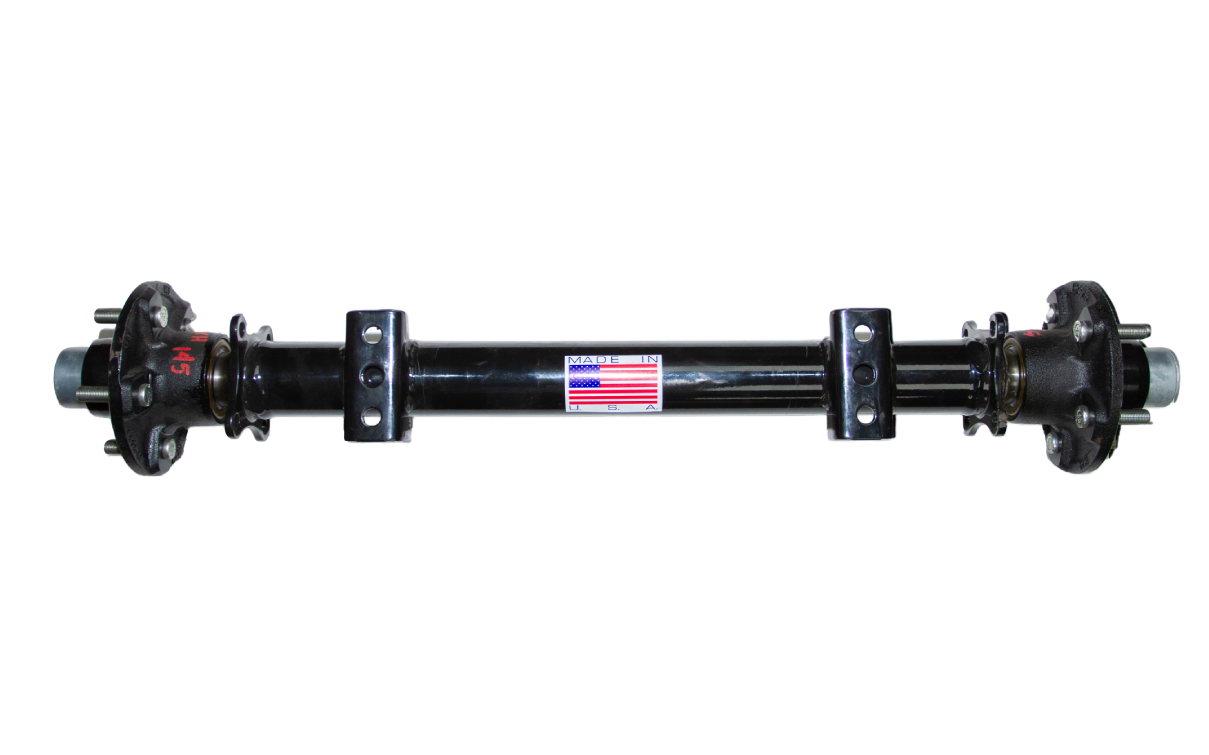

Axles

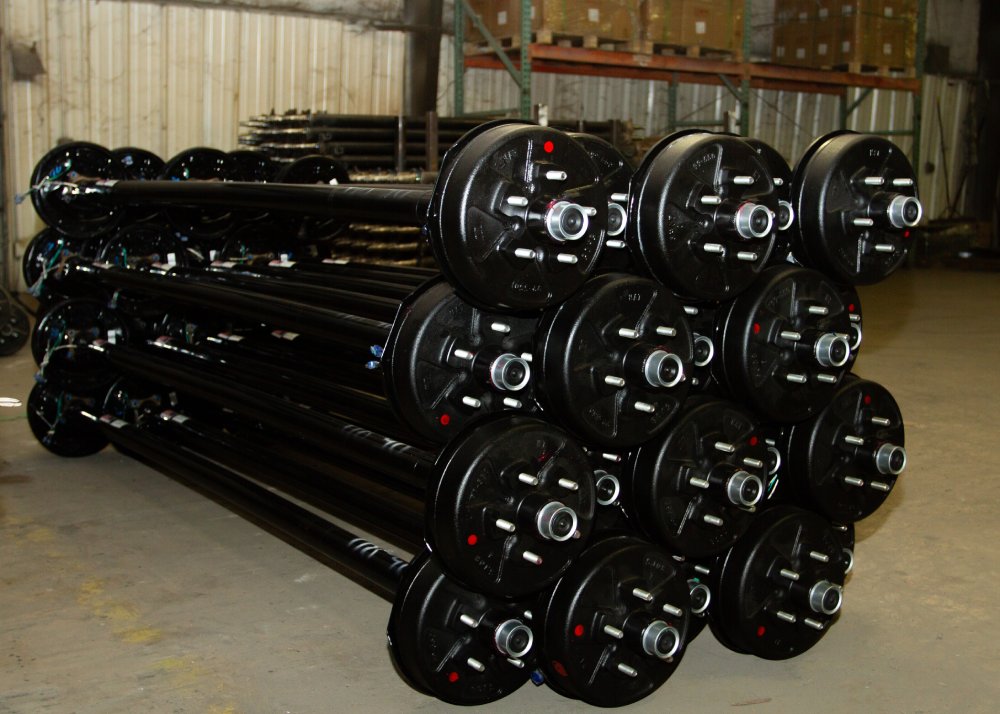

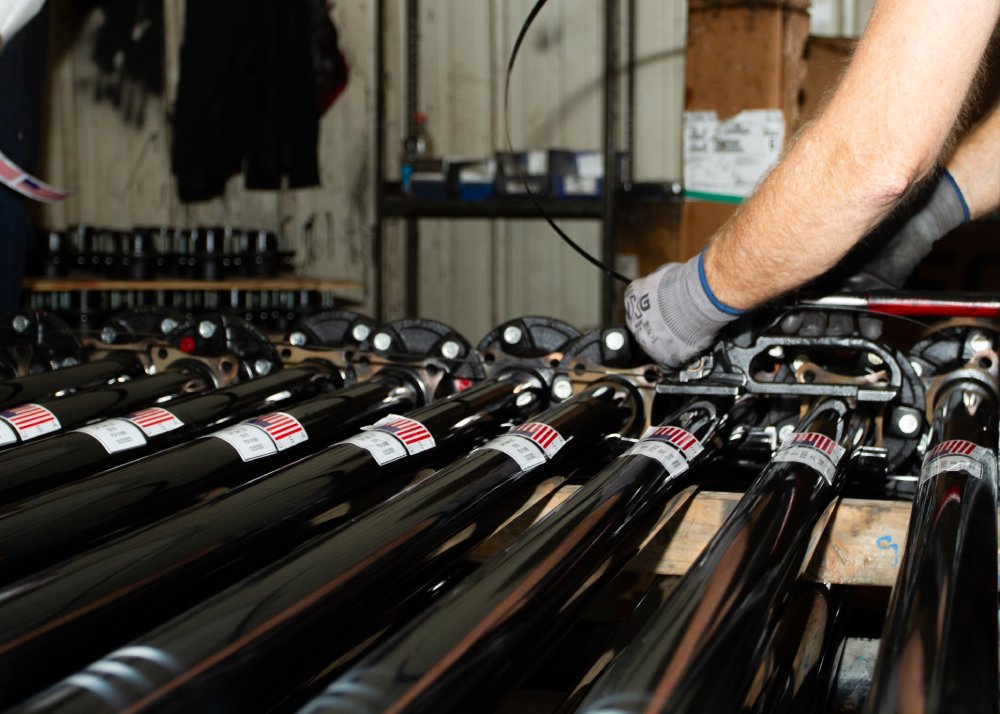

At our Beebe location, we assemble all our axles. Sizes range from 2K all the way up to 10K, with material thickness matched to the capacity.

Axle Details:

Capacity Wall Thickness
2K to 35K .180
52K to 6K .180
7K to 10K .250

Bearings, Races & Seals

Options include 35K, 52K, 6K, 7K, 8K, and 10K.

Bearings

AP Part # Bearings
461001 14125A 7K OUTER
461002 15123 6K OUTER
461003 25580 6K/7K INNER
461004 L44649 35K Outer
461005 L68149 35K INNER
461006 L44643 1" BT
461475 02475 8K OUTER
10K-387A 387A 10K INNER

Races

AP Part # Races
473001 L68111 INNER RACE 35K
473002 L44610 OUTER RACE 35K
473004 25520 RACE FOR 25580 BEARING
473006 15245 FOR 15123 BEARING
473008 14276 FOR 14125A BEARING
8K-02420 8K OUTER
10K-382A 382A 10K INNER

Seals

AP Part # Seals
474001 L68111 INNER RACE 35K
474002 DL3500 35K SEAL
474003 DL220 1-1/16" SEAL
474004 DL200 1" SEAL
474005 DL700 2-1/4" SEAL
10K-2875 10K SEAL

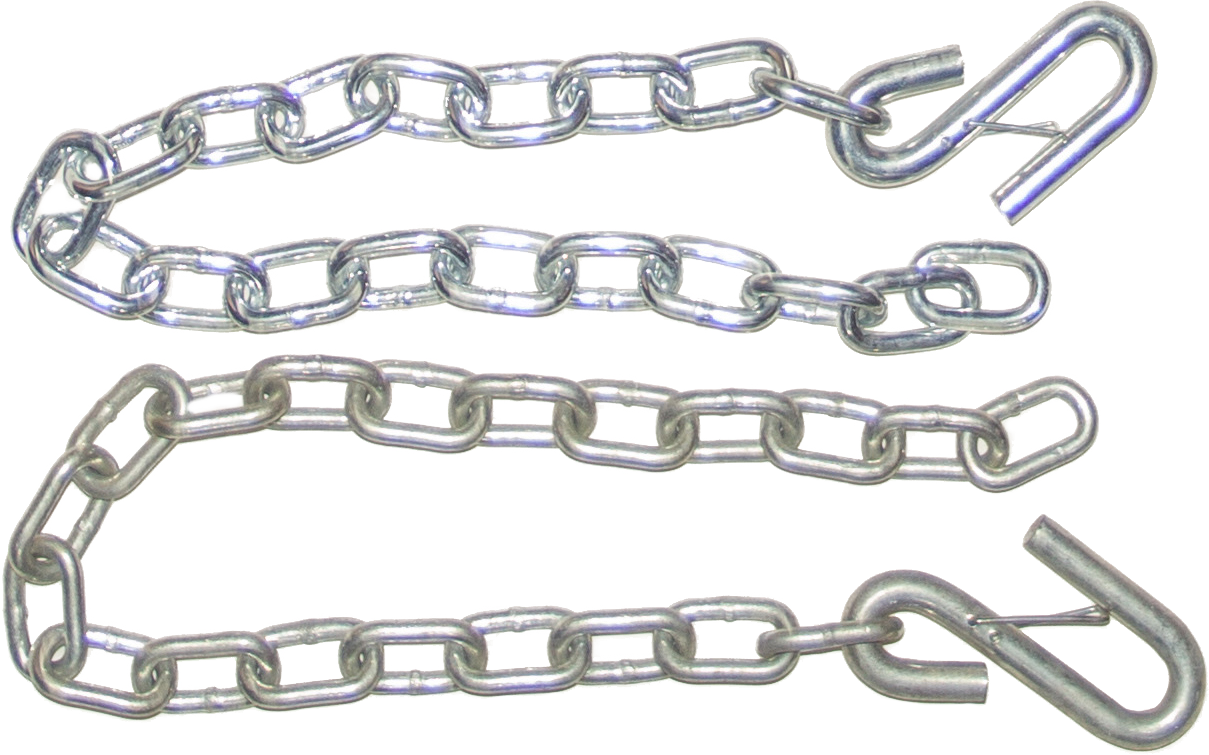

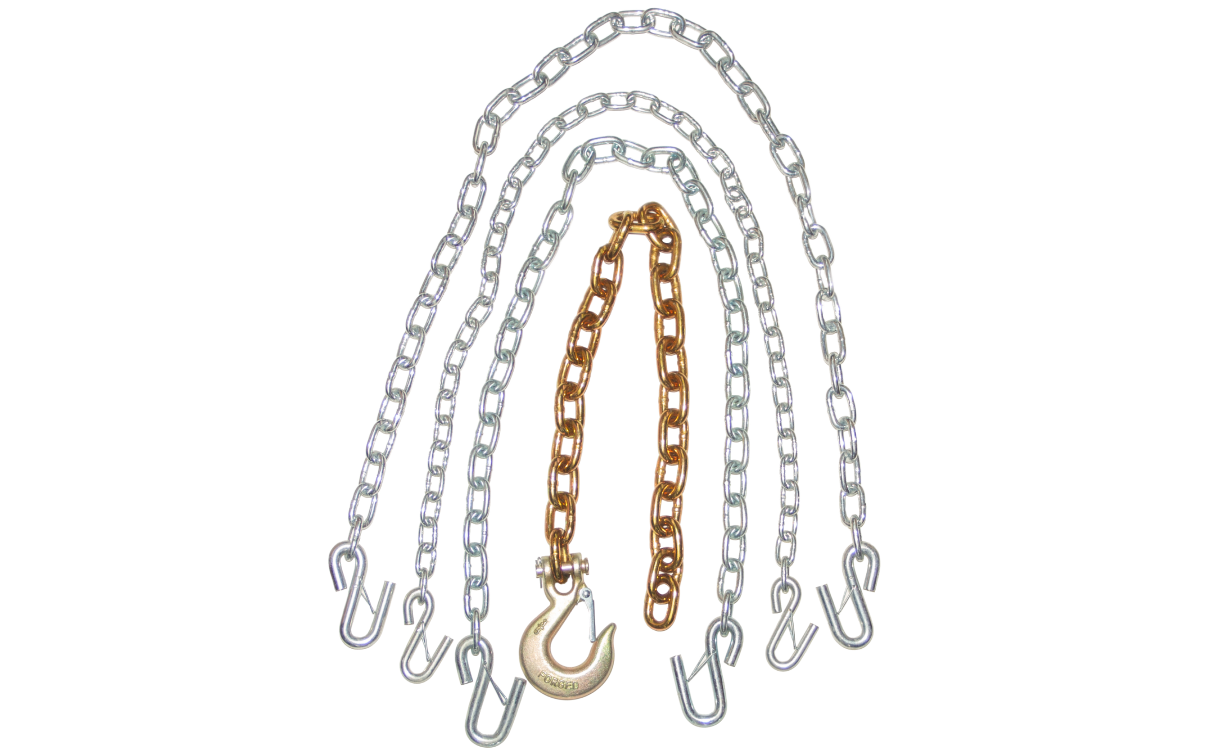

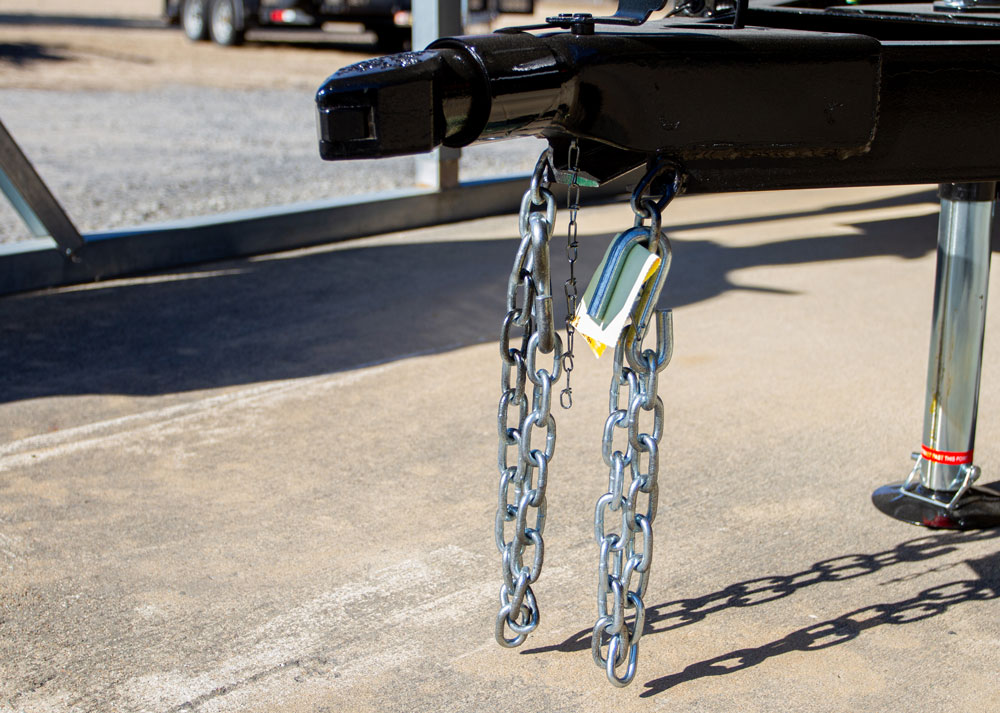

Safety Chains

Sizes available include multiple chain and hook combinations for common trailer setups.

Safety Chains

AP Part # Safety Chains
419001 3/16X48 WITH 2 S HOOKS
419002 1/4X48" WITH 2 S HOOKS
419004 1/4X27" WITH 1 S HOOK
419005 1/4X54" WITH 2 S HOOKS
419006 3/8X35" WITH 1 CLEVIS HOOK
419007 5/16X30" WITH 1 HOOK

Fenders

All our fenders are built for long term durability and are available in different sizes and materials. We offer 9 x 32 and 9 x 72 smooth and treadplate as well as straight teardrop and Jeep style treadplate.

AP Part # Fenders Skid Qty
410072 9X72 TEARDROP 90
410009 9X72 STRAIGHT 90
410010 9X72 FENDER BACK 90
410032 9X32 SINGLE 100
410033 9X32 SINGLE BACK 100
410015 9X72 TEARDROP DIAMOND PLATE
410172 10-3/4X72 TEARDROP DIAMOND PLATE
410828 7-3/4X28 SINGLE
171414-32-Fender 9 X 32 Treadplate 14 Ga; Radius Fender
171414-32-Back-R Back Radius; 16 Ga Treadplate
171414-32-JF 9 X 32; 14 Ga Treadplate; Jeep Fender; Notched Edge; Single Broke
171414-32-JB 9 X 32; 14 Ga Treadplate; Jeep Fender BACK
171414(P)-72-DB-Fender-P Double Broke Fender; 14 Ga Treadplate; No Teardrop (P)
171414(P)-72-DB-Back (P) 72-DB-Back; Smooth; Double Broke BACK

Couplers

Manufactured in our Cabot, AR Facility

Our strong and durable couplers are engineered to provide a secure connection between your trailer and vehicle. Available options are 2" and 2-5/16" in channel, A frame, gooseneck, and straight styles with capacities from 5,000 pounds up to 25,000 pounds.

AP Part # Couplers Skid Qty
420002 2" ball 2" straight channel
420003 2" ball 3" straight channel
420004 2" ball 2-1/2" straight channel
420011 Adjustable Pintle Ring 14k Capacity

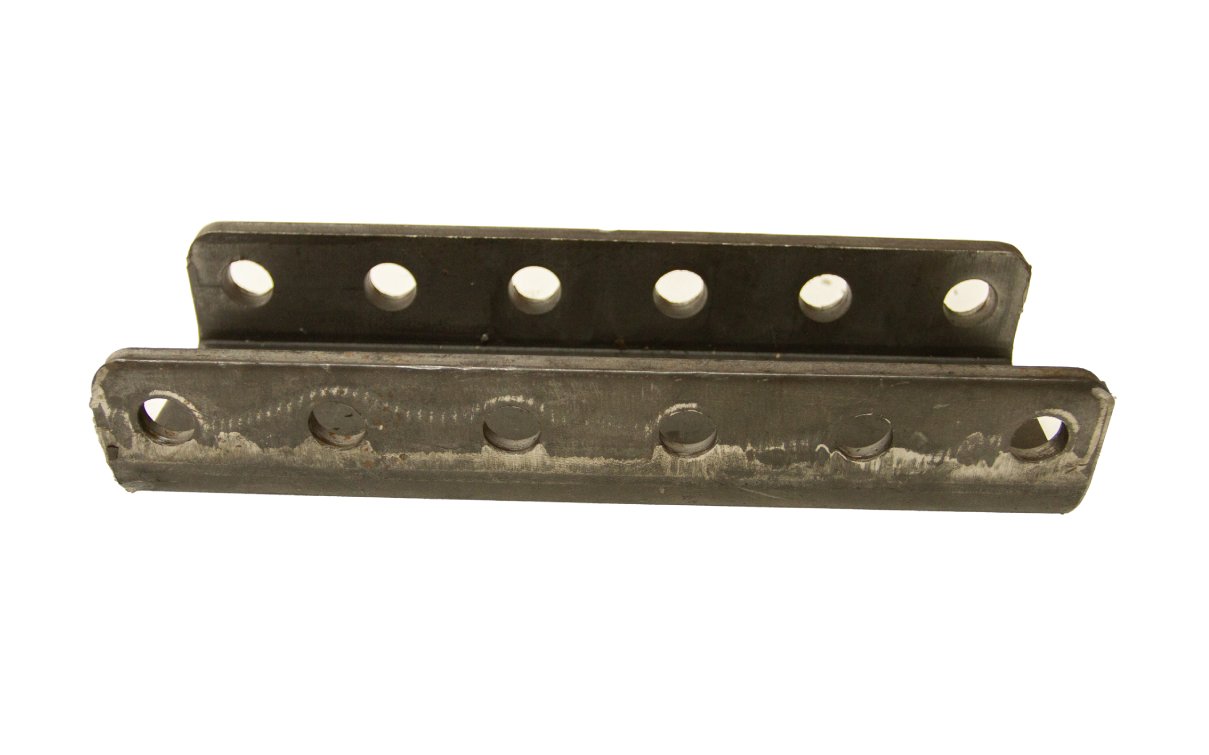

420016 6 hole Adjustable Channel 14k Capacity
420071 2" A Frame Collar Style 7k Capacity 150
420103P Gooseneck Coupler
420109 2-5/16" A Frame Collar Style 12,500 Capacity 120
420110 5K Coupler A Frame 250
42012T Adjustable Pintle Ring 24k Capacity
42015k 2-5/16" A Frame 15,000 Capacity
420208 2" 8k Coupler A Frame 250
420290 2-5/16" Adjustable Collar Style 12,500 Capacity 160
420800 2" Adjustable Collar Style
420900 2-5/16" Adjustable Coupler 14K Capacity

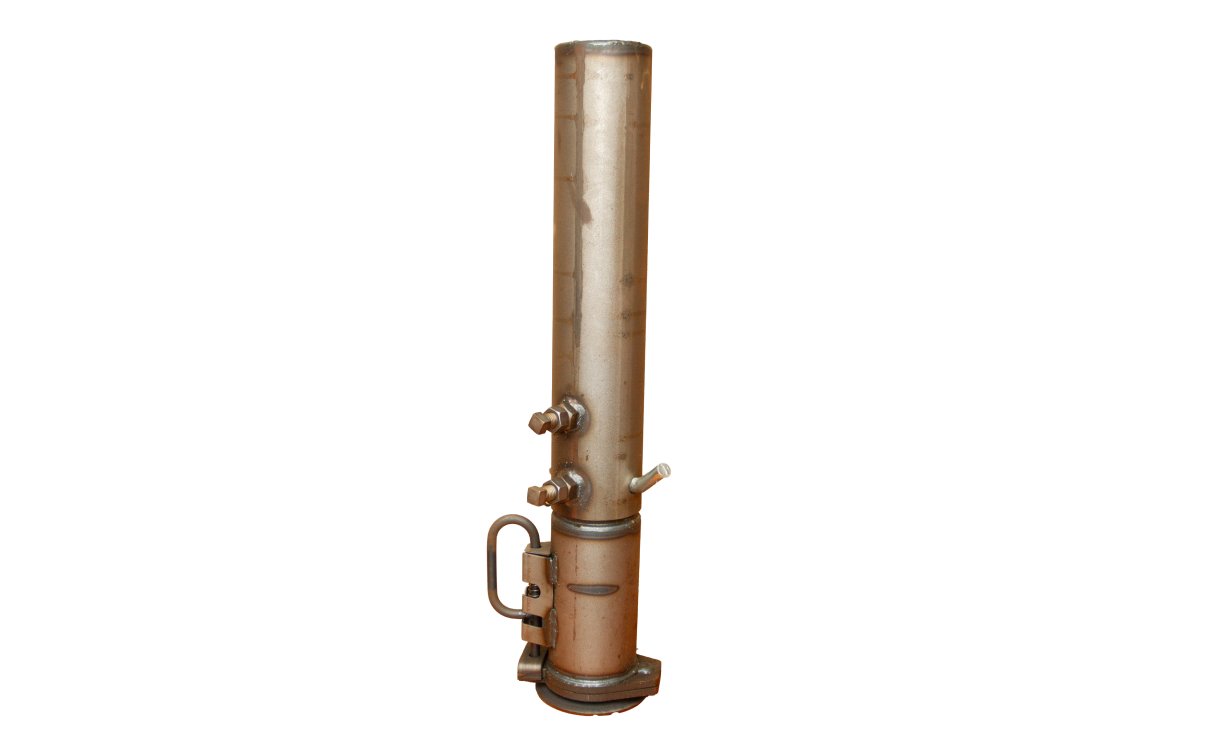

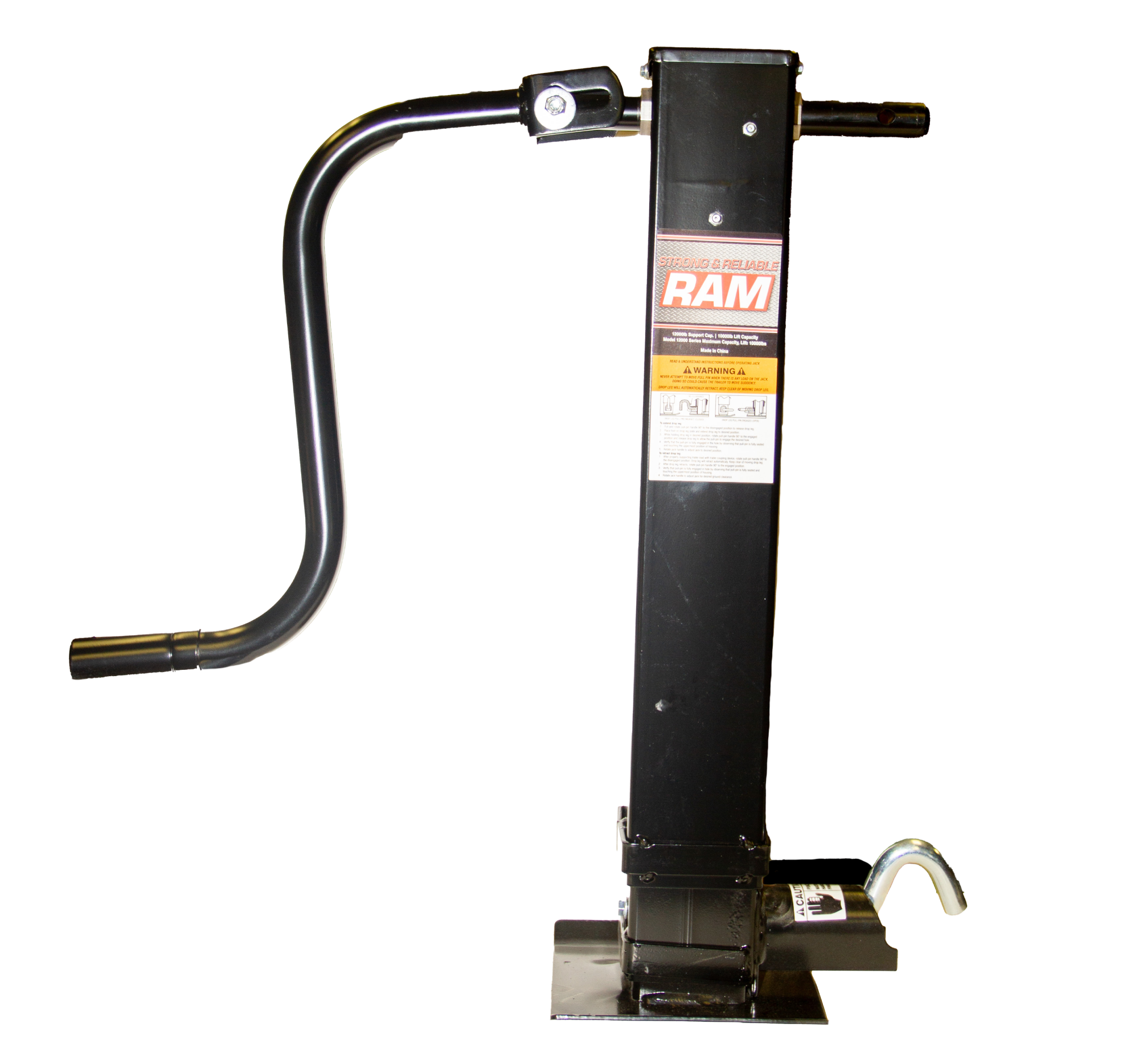

Jacks

Options include pipe mount, flange mount, drop leg, and electric A frame jacks for different trailer sizes and needs.

Options include

2K pipe mount
2K flange mount
2K drop thru
7K top wind and side wind
12K front and side pin

Jacks

AP Part # Jacks Skid Qty
427000 2k A Frame Top Wind Zinc 200
427002 2k A Frame Top Wind Black 200
427072 7k Top Wind Drop Leg 90
427073 7k Side Wind Drop Leg 90
427102 12k Drop Leg 2 Speed Front Pull
427103 12k Drop Leg Side Pull 30
427104 12k Drop Leg Front Pull 30
427500 2k Top Wind Pipe Mount
427502 2k Swivel Flange Mount Top Wind
427901 35k Electric A Frame Jack
426001 1000# Marine Swivel Jack w Caster

Jack Accessories

AP Part # Accessories
427600 Jack Support Plate 10ga
426011 Caster Wheel Steel
426015 Jack Foot Steel With Pin
426016 Economy Sand Foot
426026 2k Drop Leg Insert With Pin

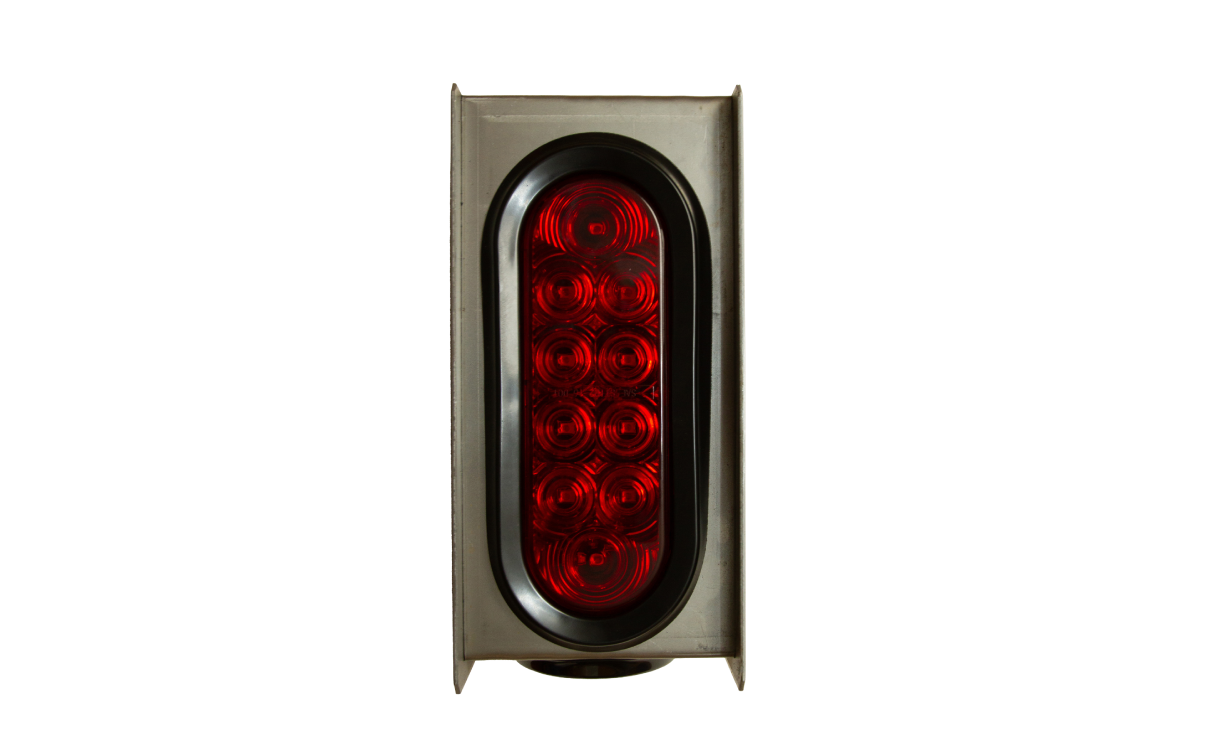

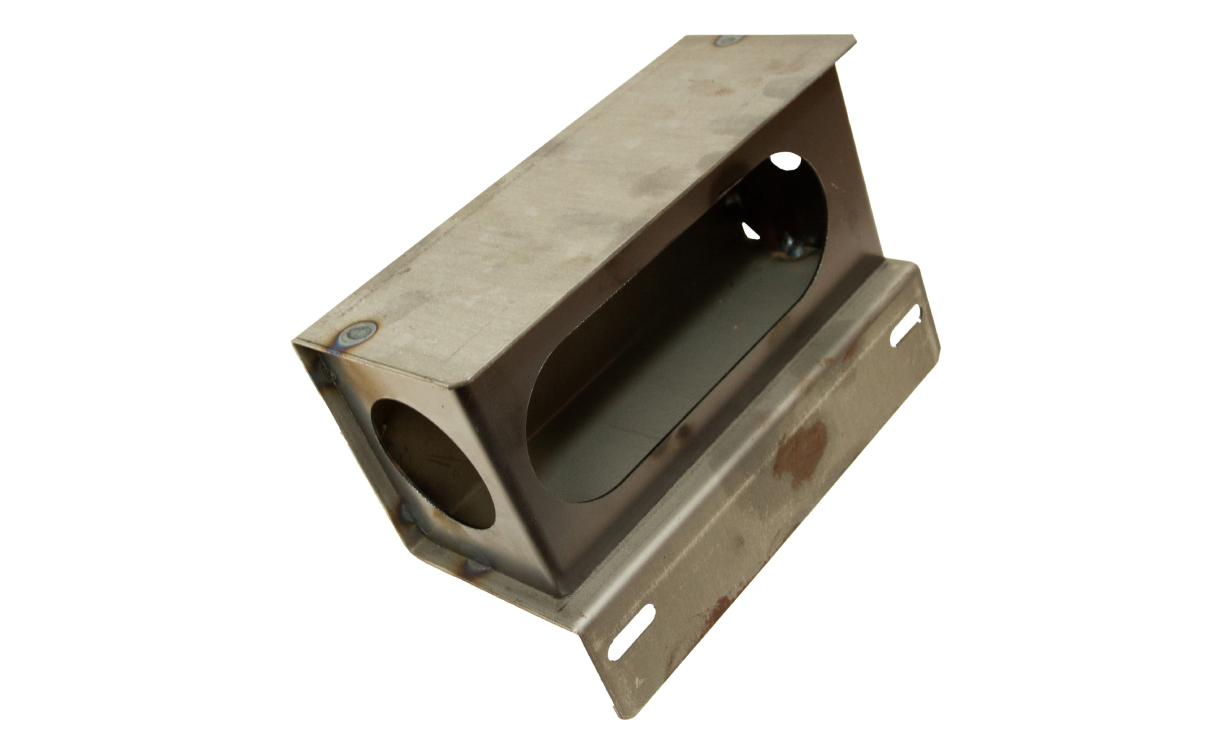

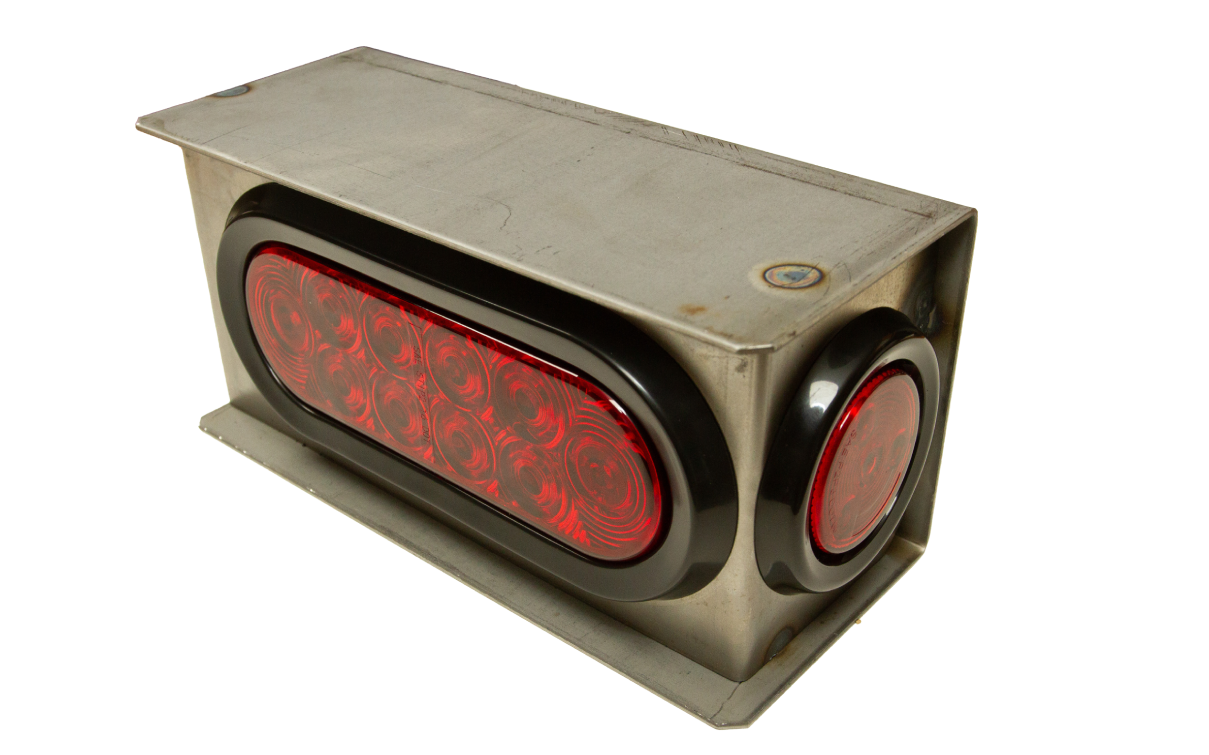

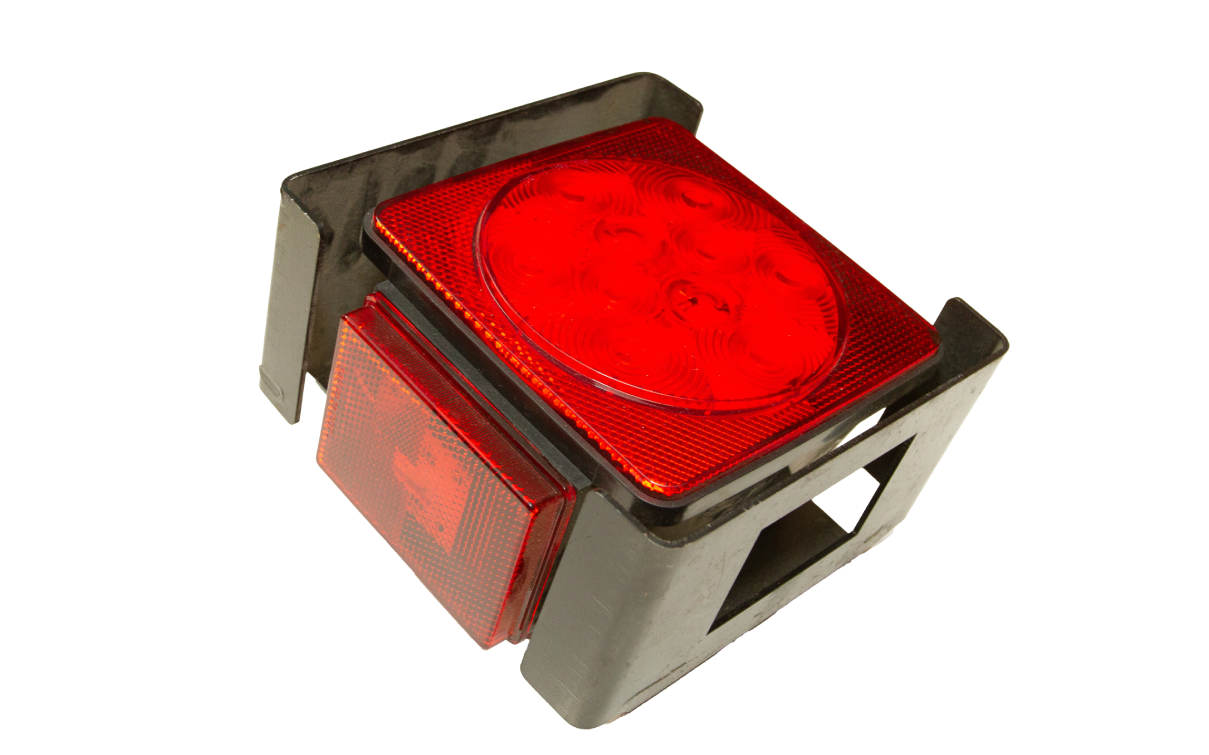

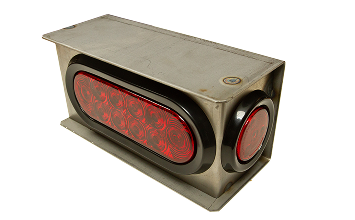

Light Brackets / Boxes

Manufactured in our Cabot, AR Facility

There are lots of options for our light mounts offered in different sizes and material gauges and all are manufactured at our Cabot location. Material ranges from 4 gauges up to 16 gauges, and winged light tabs can also be made using treadplate material.

AP Part # Light Brackets / Boxes
439001 440 Square Right Hand
439002 440 Square Left Hand
439004 2-1/8 X 1-1/8" AMBER MARKER LIGHT M-114A
439007 7 Way Round Flat Pin Trailer Plug (RV)
439011 2-1/8 X 1-1/8" RED MARKER LIGHT M114-R
439021 4 WAY TRAILER CONNECTOR
439023 3/4" LED AMBER SINGLE DIODE
439024 3/4" LED RED SINGLE DIODE
439036 4" ROUND LED STT
439037 6" OVAL STT WITH GROMMET AND PIGTAIL
439042L 440 SQUARE LIGHT BOX LH/RH UNIVERSAL
439045 2" AMBER LED LIGHT WITH GROMMET
439046 2" RED LED LIGHT WITH GROMMET
439048 4 WAY FLAT WITH 48" LEAD
439065 2PC LIGHT BOX 6" OVAL AND 2" ROUND RH
439065L 2PC LIGHT BOX 6" OVAL AND 2" ROUND LH

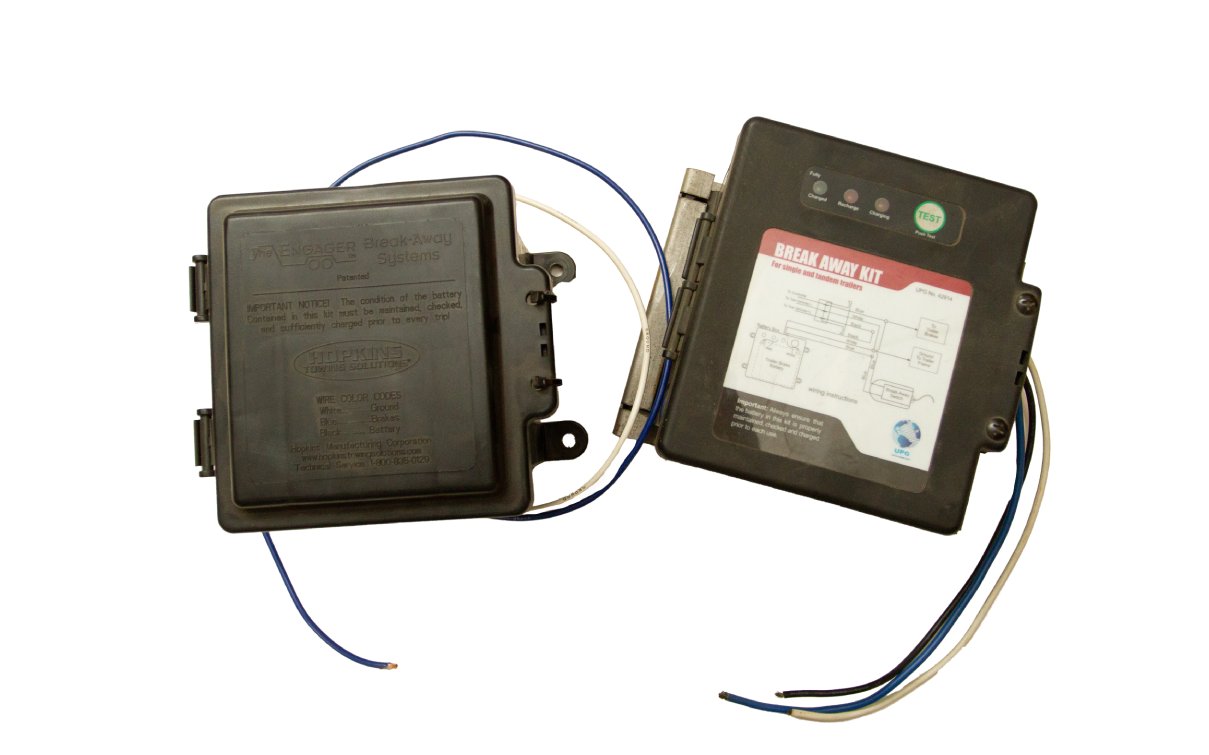

439100 LED BREAK AWAY KIT W WELD ON BRACKET AND SWITCH
439103 SIDE MOUNT BREAK AWAY KIT
439BAC 6" OVAL BACK UP LIGHT CLEAR
439550 440 LED LH SQUARE TAIL LIGHT
439551 440 LED RH SQUARE TAIL LIGHT
173038 BOLT ON TAG BRACKET

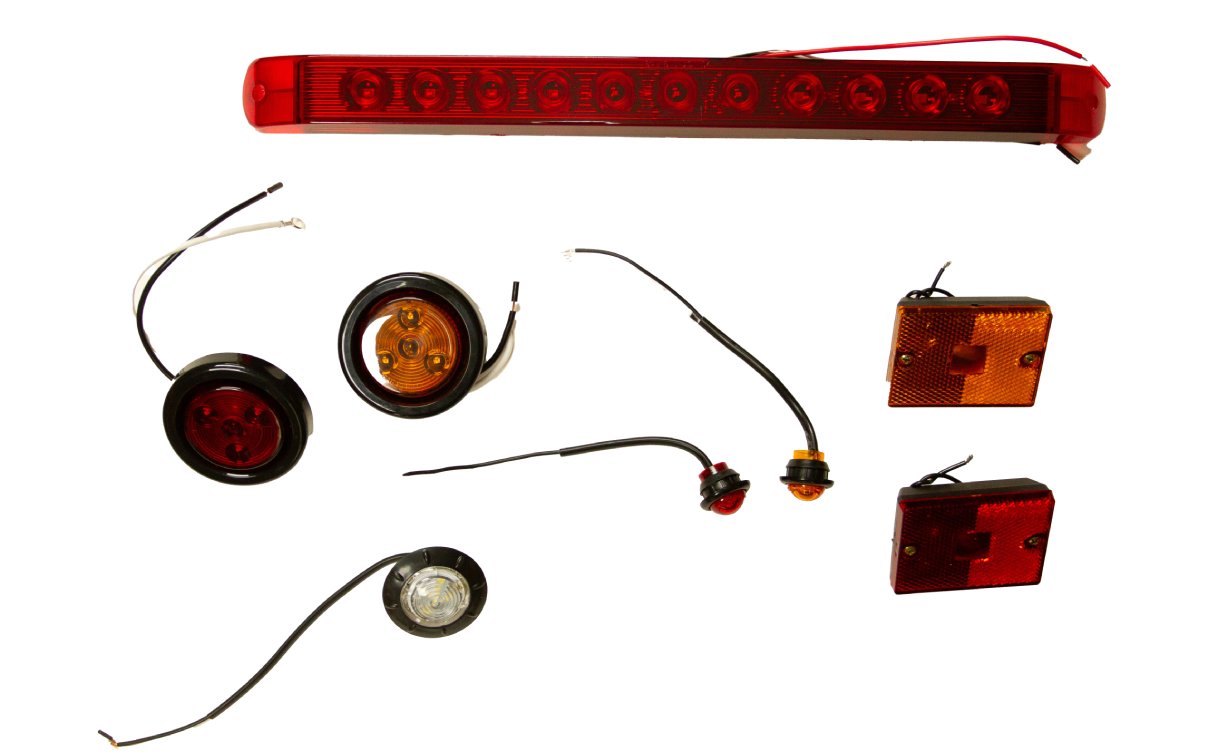

Light

Options available include multiple sizes and styles for marker, tail, and backup lighting.

Options available

3/4" to 2" amber or red
6" oval red
440 square LED or incandescent
6" oval backup light

Dust Caps

Options include 2K, 35K, 52K, 7K, 8K, and 10K with common bolt patterns.

AP Part # Axle Capacity Bolt Pattern
469001 2000 440/545
469001 3500 545/5475/550/555/655
469002 5200-6000 655
469003 7000-8000 865
469010 Rubber Plug

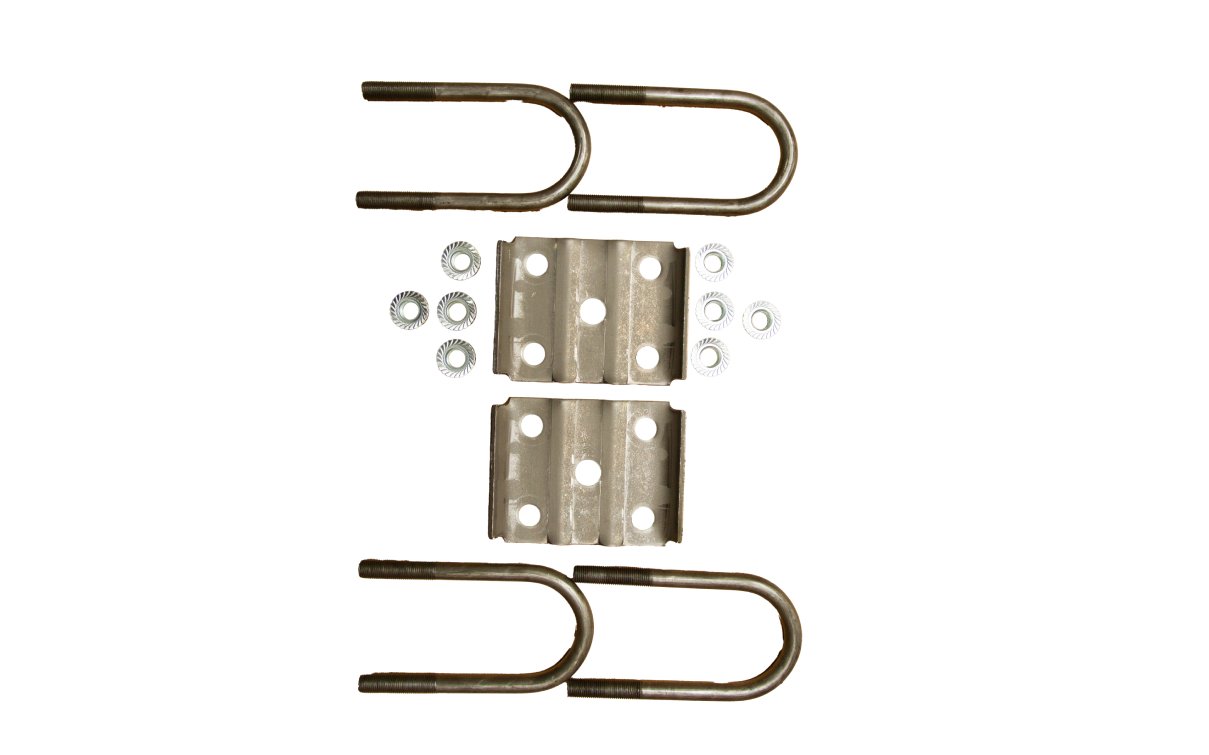

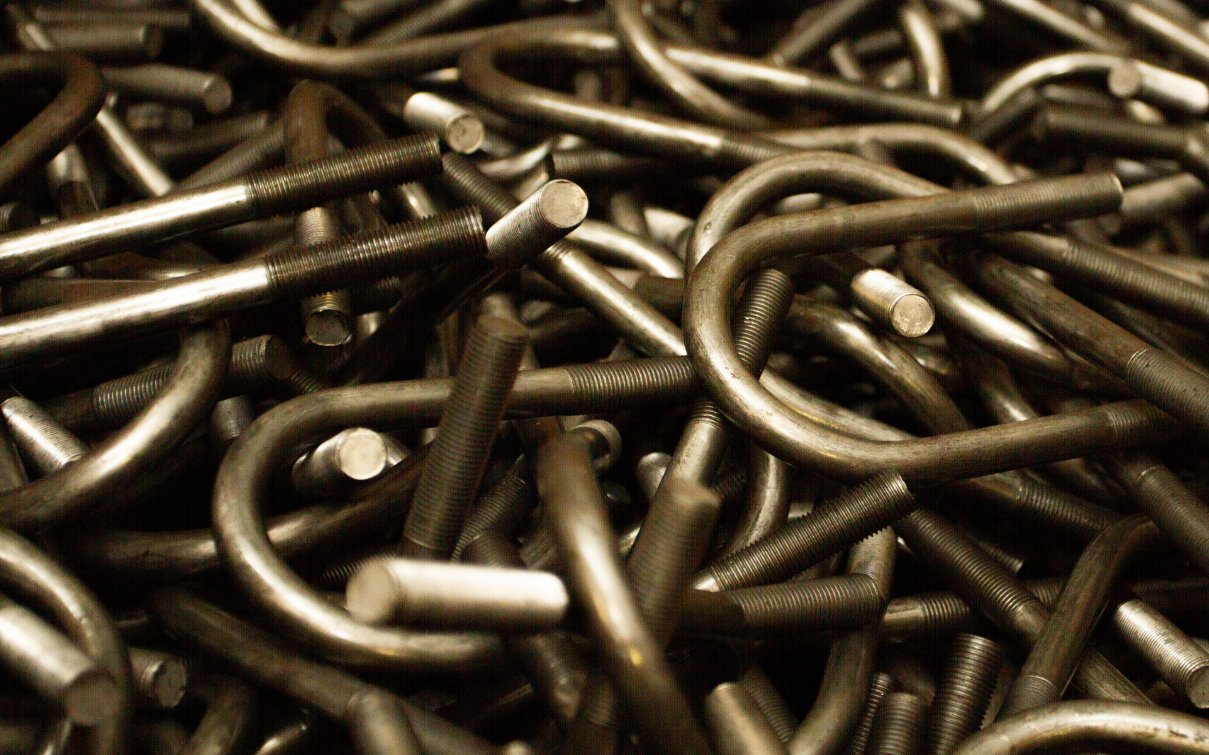

UBolt Kits

These kits come with all needed parts to attach the springs to the axle. Available sizes include 2K, 35K, 52K/6K/7K, 8K, and 10K/12K/15K.

AP Part # Axle Capacity
KTPG1141 2000 LBS
KTPG1121R 3500 LBS
KTPG1118 5200-7000 LBS
8KTPG 8000

Hanger Kits

This kit has all the hardware needed to attach your spring and axle to the trailer. Available options include single, tandem, and slipper.

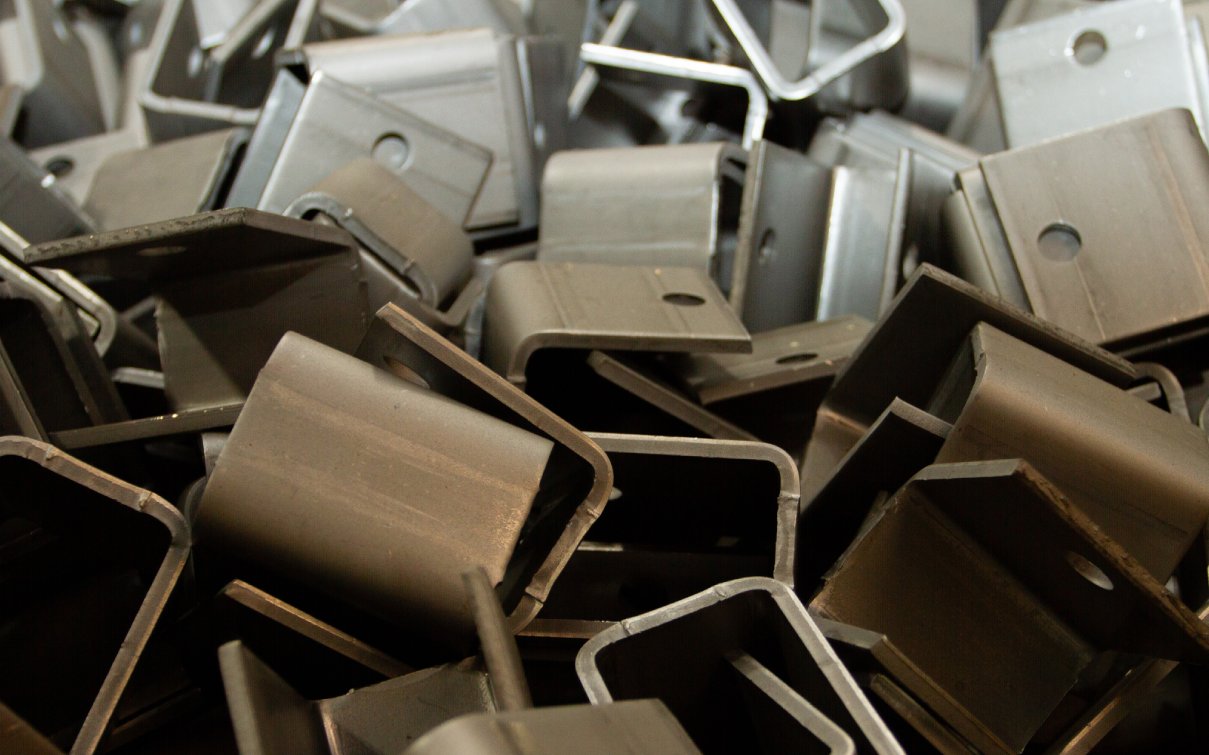

Hangers

Manufactured in our Cabot, AR Facility

We are among the leaders in the industry when it comes to the quality of hangers, which can be attributed to in house manufacturing using 4 gauge material. We manufacture all the hangers that we sell and they come in narrow, 2", 3", 4", and 4.5". We also use 4 gauge material for our shackle straps. These products can be purchased in large quantities or pre assembled kits.

AP Part # Style
KHANGAPS1 SINGLE AXLE EYE TO EYE
KHANGAPT3 TANDEM AXLE EYE TO EYE WITH 2" & 3" HANGERS
KHANGAPT4 TANDEM AXLE EYE TO EYE WITH ALL 3" HANGERS
KHANGAPT5 TANDEM AXLE EYE TO EYE WITH 3" & 4" HANGERS
KHANGAPT7 TANDEM AXLE EYE TO EYE WITH ALL 4" HANGERS
288 HANGER KIT 52K-8K SLIPPER SPRING
SINGLE REPAIR KIT SINGLE AXLE KIT NO HANGERS
TANDEM REPAIR KIT TANDEM AXLE KIT DOUBLE EYE SPRINGS NO HANGERS
288 HARDWARE KIT TANDEM AXLE KIT SLIPPER SPRINGS NO HANGERS

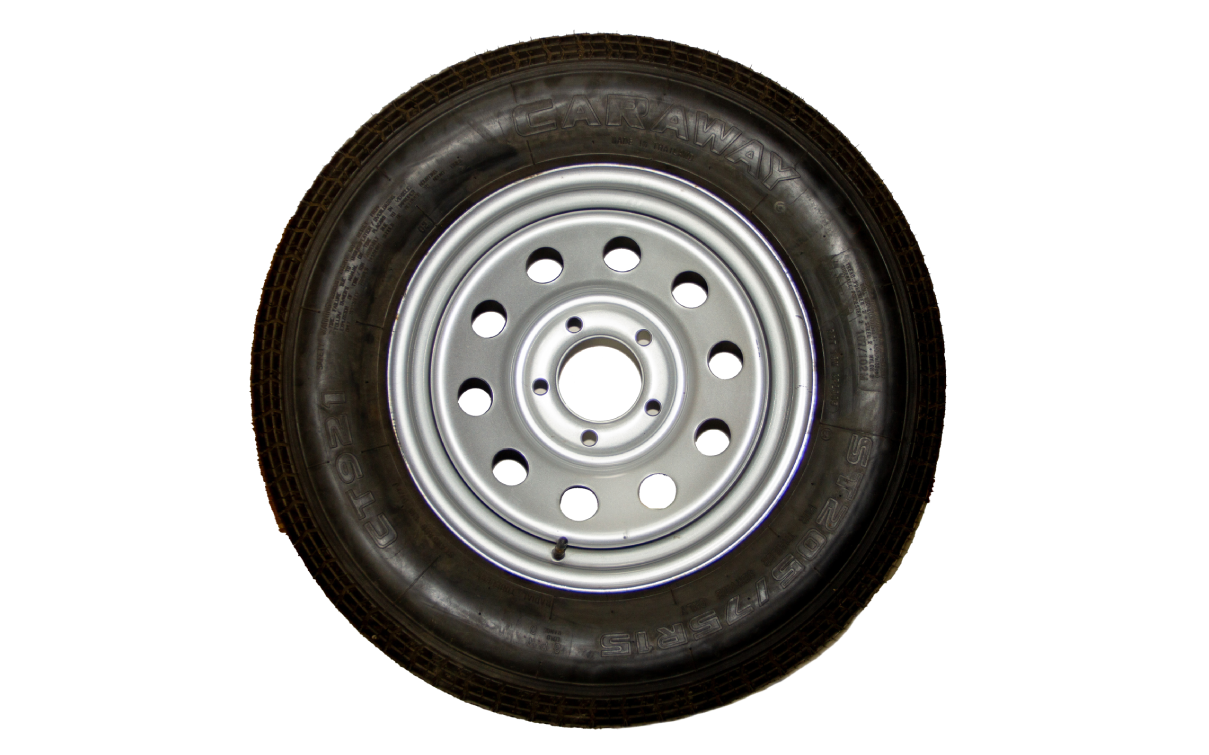

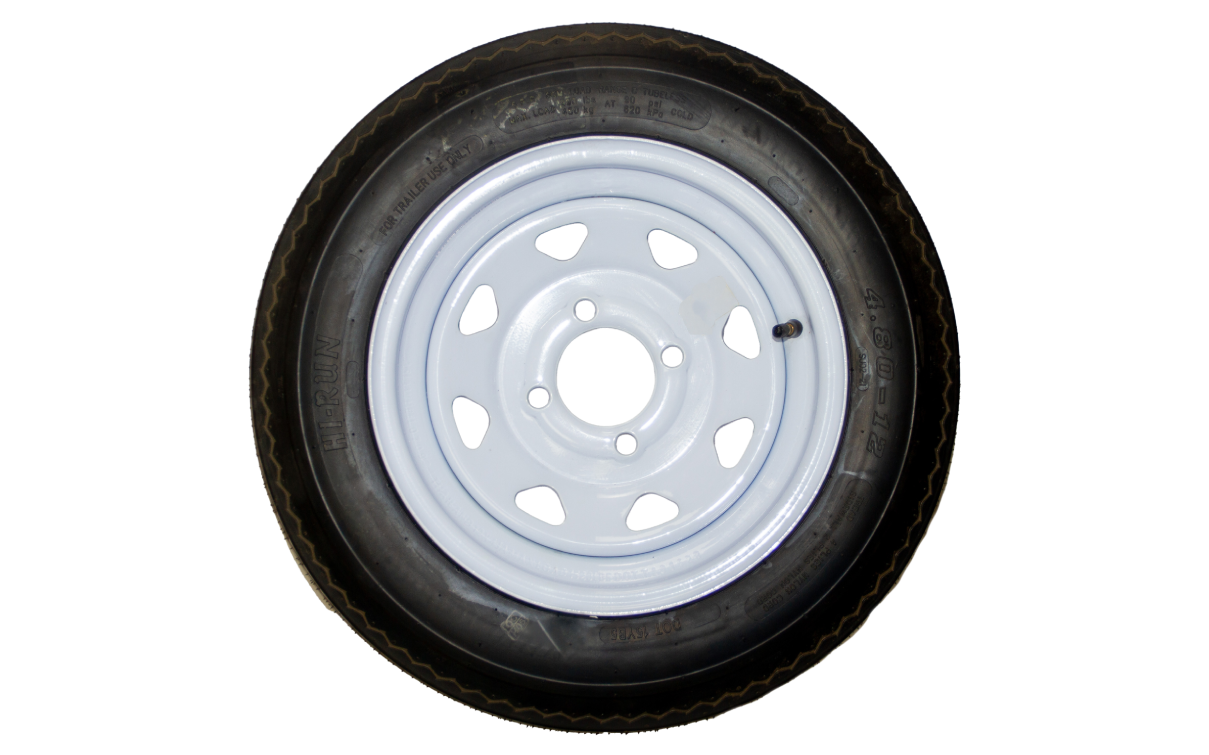

Tires

Sizes include 12", 13", 14", 15" in 205 or 225, plus 16" 6 hole options and 8 hole options in multiple ply ratings.

AP Part # Tires
415000R178/80R 13 545
415000R-185ST185/80 R13 6 PLY W/S 545
415001RST205/75 R14 8 PLY RADIAL 545 S/M
415023ST 205/75R15 545 8 PLY
415718ST 205/75R15 550 8 PLY
415848ST235/75R16 865 10 PLY
415847ST 235/75R16 655 10 PLY
41514PLYST 235/75R16 865 14 PLY
415011ST 225/75R15 655 10 PLY
415526ST 225/75R15 550 10 PLY
415545ST 225/75R15 545 10 PLY
415015-RST480 X 12 RADIAL 6PLY WS 545
4150164.80-12 440 W/ Spoke 4 Ply
415016-RST480 X 12 RADIAL 6PLY WS 440
41502020.5 X 8 X 10 On 545 8 Ply

Hubs

We offer a wide variety of both idler and brake hubs in multiple bolt patterns.

Idler Hubs

AP Part # Axle Capacity Bolt Pattern Stud Size
495100A2000 1-1/16"4401/2"
4951012000 1"4401/2"
4951502000 1-1/16"5451/2"
4951512000 1"5451/2"
49554535005451/2"
495547350054751/2"
49555035005501/2"
49555535005551/2"
49565535006551/2"
4951265200-60006551/2"
49512870008651/2"
49591670008659/16"

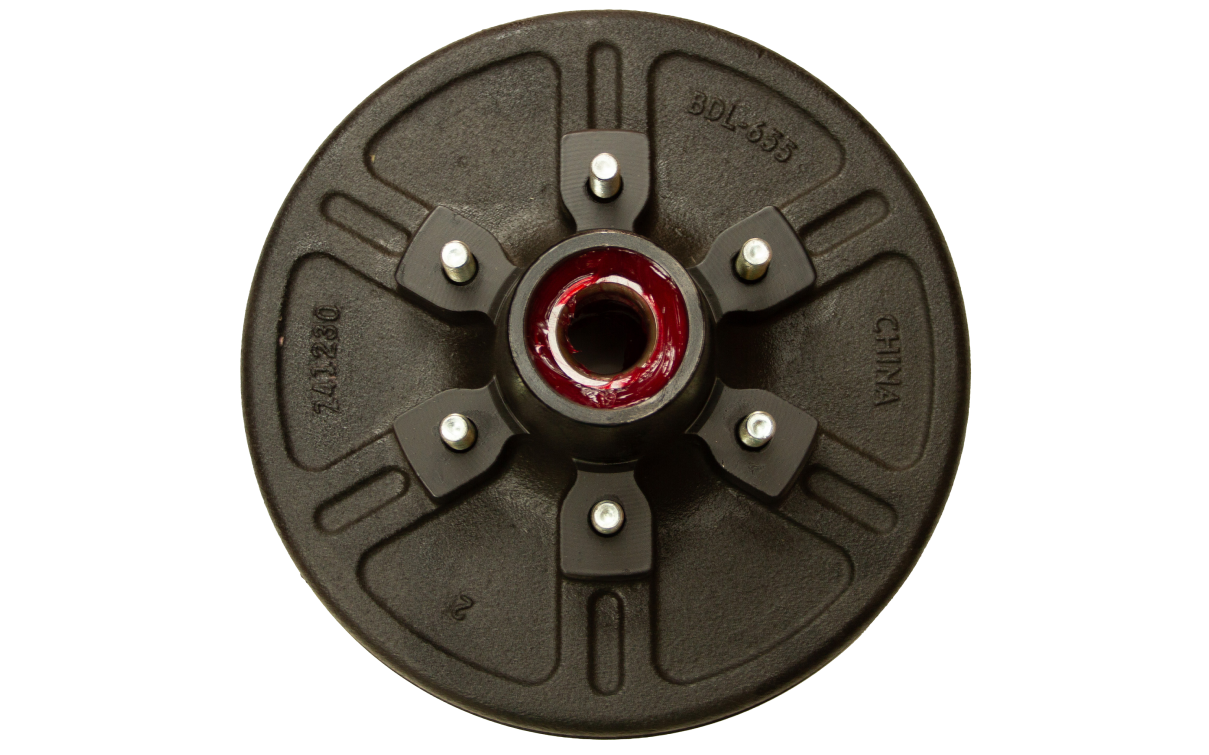

Brake Drums

AP Part # Axle Capacity Bolt Pattern Stud Size
49754535005451/2"
497547350054751/2"
49755035005501/2"
49755535005551/2"
49765535006551/2"
4971265200-60006551/2"
49712870008651/2"
49791670008659/16"
49795870008655/8"
4978KDNAR9168000 NARROW 2"8659/16"
4978KDNAR588000 NARROW 2"8655/8"
4978KD9168000 3-3/8" BRAKE8659/16"
4978KD588000 3-3/8" BRAKE8655/8"
D10K-C8-430-5DEXTER STYLE 10K GD HUB & DRUM8655/8"

Brakes

AP Part # Brakes
43110010" BRAKE LH ELECTRIC
43110110" BRAKE RH ELECTRIC
43112012" BRAKE LH ELECTRIC
43112112" BRAKE RH ELECTRIC
4314508K LH ELECTRIC
4314518K RH ELECTRIC
43155410K LH ELECTRIC 7 HOLE
43155510K RH ELECTRIC 7 HOLE
43501010" BRAKE LH HYDRAULIC
43501110" BRAKE RH HYDRAULIC
43501212" BRAKE LH HYDRAULIC
43501312" BRAKE RH HYDRAULIC

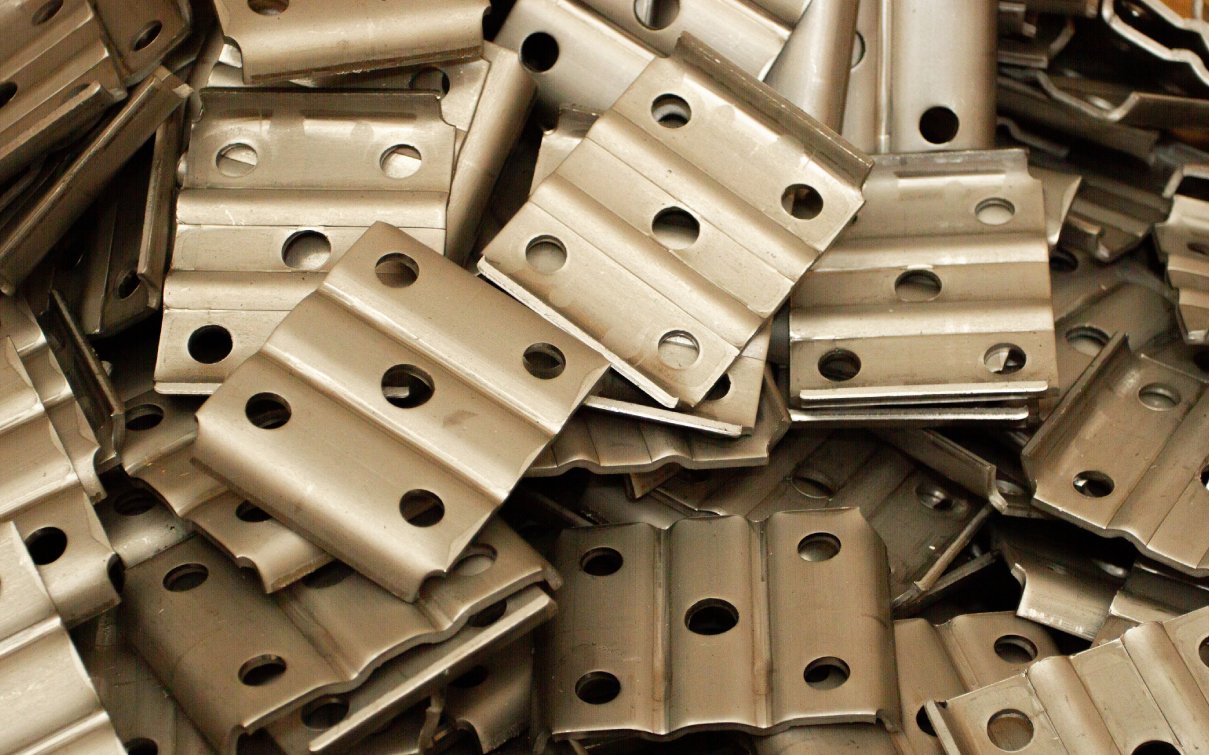

Hardware

Shackle links and tie plates are manufatured in our Cabot, AR Facility

We offer a variety of different hardware in multiple sizes such as nuts, bolts, washers, tie plates, and shackle links.

Accessories

Our manufactured toolboxes come in different sizes that are the perfect accessories for your trailer. We also produce other trailer accessories such as stake pockets, weed eater racks, and light boxes, fender steps, dump trailer hinges, winged light tabs, ramp springs, license plate brackets, gate latches, spare tire mounts, and breakaway boxes.

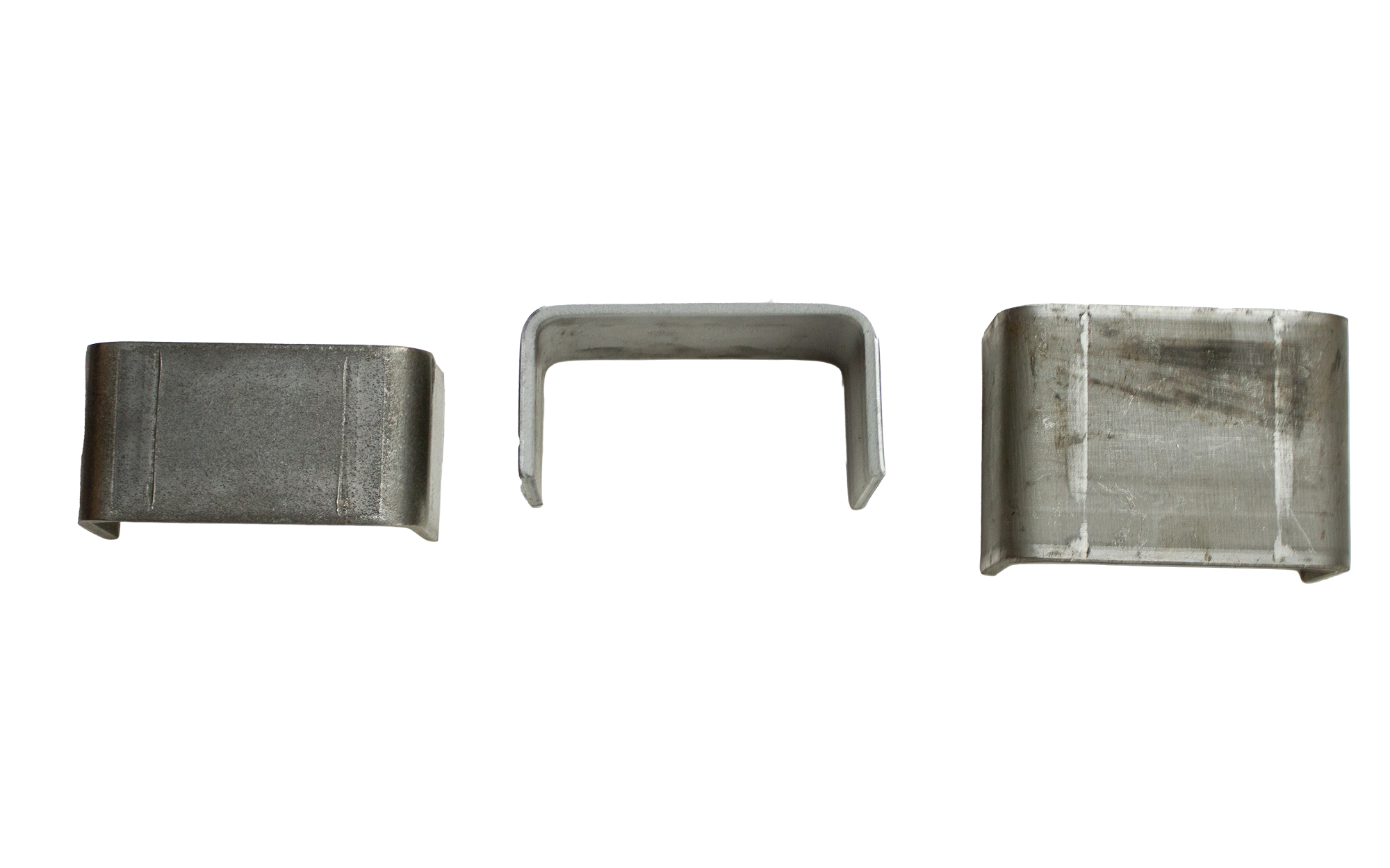

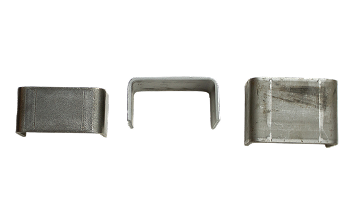

Stake Pockets

Our 2" and 3" stake pockets are manufactured in house using 7 gauge material but are also available using 4 gauge for heavy duty application.

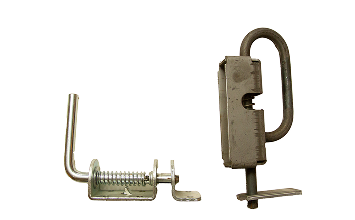

Gate Latch

We form a gooseneck latch, a spring loaded gate latch, and a 3 piece latch set at our facility. Spring latch assemblies are also available.

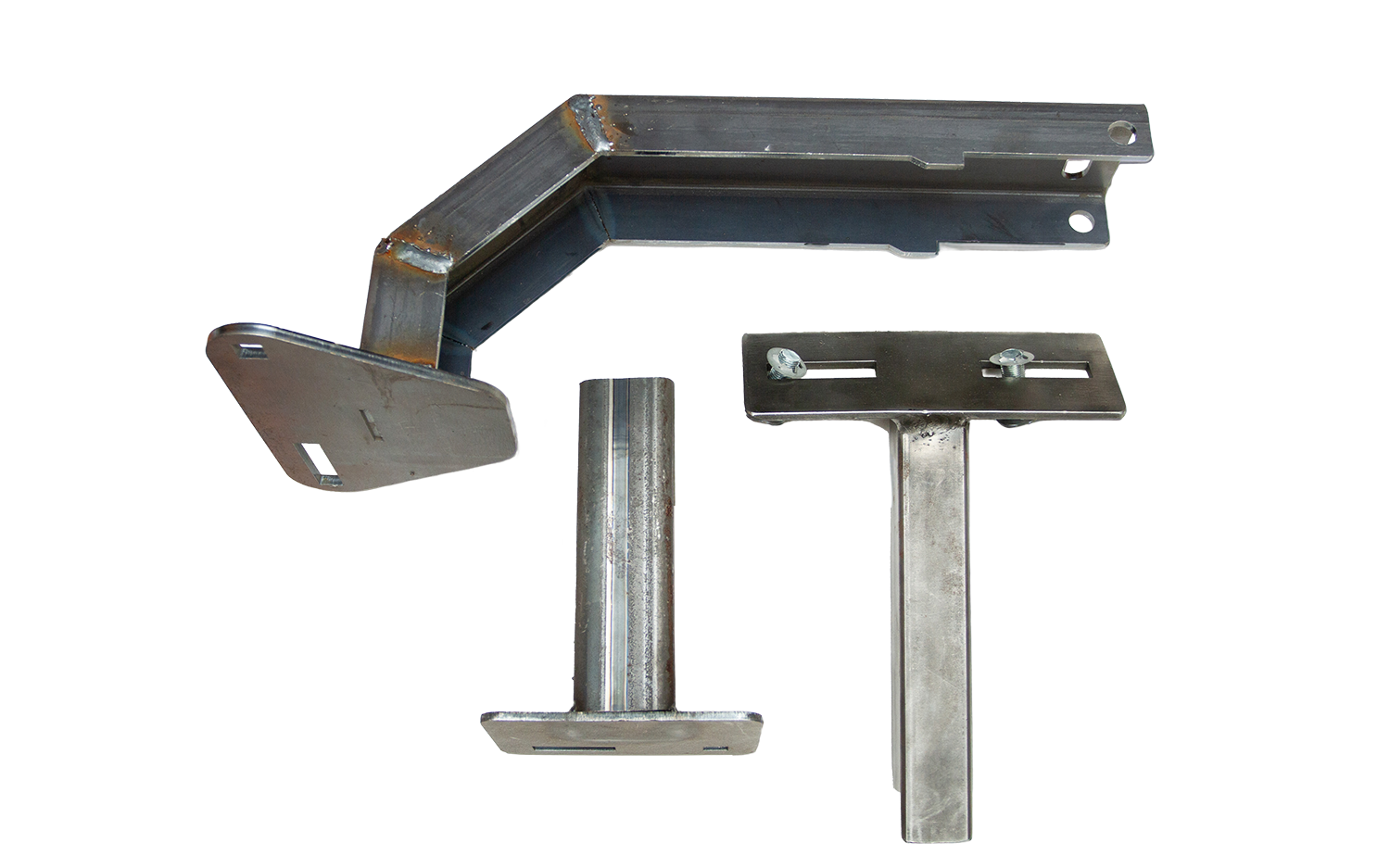

Spare Tire Carriers

Our most popular spare tire carriers are pictured, but we possess the capability to manufacture several variations and sizes upon request.

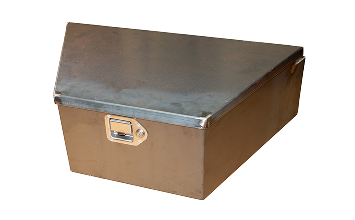

Toolboxes

Our manufactured toolboxes come in different sizes that are the perfect accessories for your trailer.
